Assembly Series

M22 Series

M22 Assembly Male-Female Connector M22 Assembly Male-Female Connector

M22 Assembly Male-Female Connector

Part Number
LLT-M22-25002F1051
Rated Voltage
250V
Rated Current
25A
Wire Gauge
⌀ ≤2.5 mm²
Cable Outer Diameter
⌀ 3.5-10mm
Mating Cycles
3000
Operating Temperature
-40℃~+105℃
Waterproof Rating
IP67
Pin Layout
2pole
Pin Layout
Pin Layout Diagram

Assembly/Injection Molding Series

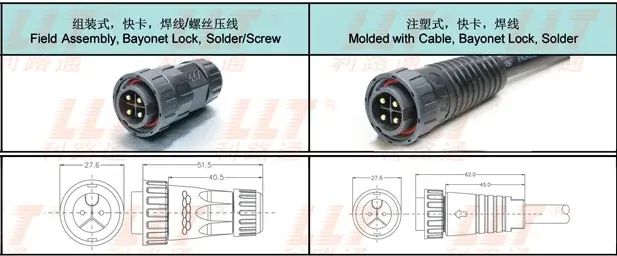

M22 Male Pin Male Connector M16 Female Pin Male Connector

M22 Male Pin Male Connector

Part Number
LLT-M22-25002F1051
Rated Voltage
250V
Rated Current
25A
Wire Gauge
⌀ ≤2.5 mm²
Cable Outer Diameter
⌀ 3.5-10mm
Mating Cycles
3000
Operating Temperature
-40℃~+105℃
Waterproof Rating
IP67
Pin Layout
2pole
Pin Layout
Pin Layout Diagram
↔

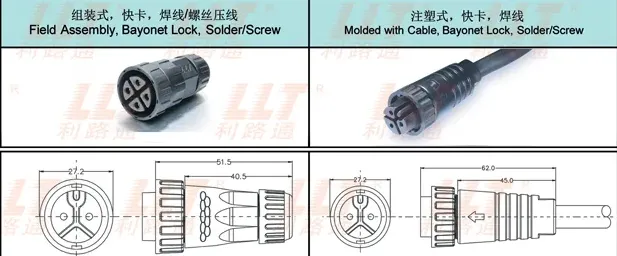

M22 Female Pin Male Connector M16 Flanged Female Pin

M22 Female Pin Male Connector

Part Number
LLT-M22-25002F1051
Rated Voltage
250V
Rated Current
25A
Wire Gauge
⌀ ≤2.5 mm²
Cable Outer Diameter
⌀ 3.5-10mm
Mating Cycles
3000
Operating Temperature
-40℃~+105℃
Waterproof Rating
IP67
Pin Layout
2pole
Pin Layout
Pin Layout Diagram

Panel Mount Series

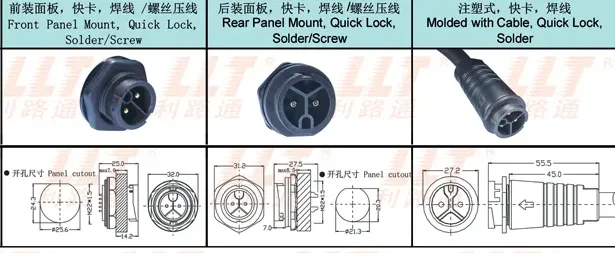

M22 Panel Mount Male Pin M22 Panel Mount Male Pin

M22 Panel Mount Male Pin

Part Number
LLT-M22-25002M2881
Rated Voltage
250V
Rated Current
25A
Wire Gauge
⌀ ≤2.5 mm²
Cable Outer Diameter
⌀ 3.5-10mm
Mating Cycles
3000
Operating Temperature
-40℃~+105℃
Waterproof Rating
IP67
Pin Layout
2pole
Pin Layout
Pin Layout Diagram
↔

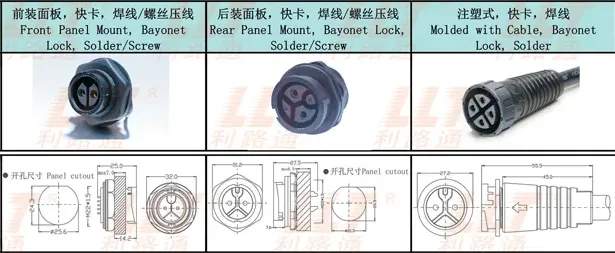

M22 Panel Mount Female Pin M22 Flanged Female Pin

M22 Panel Mount Female Pin

Part Number
LLT-M22-25002F2881
Rated Voltage
250V
Rated Current
25A
Wire Gauge
⌀ ≤2.5 mm²
Cable Outer Diameter
⌀ 1-3mm
Mating Cycles
3000
Operating Temperature
-40℃~+105℃
Waterproof Rating
IP67
Pin Layout
2pole
Pin Layout
Pin Layout Diagram
