LPL-500A Series

LPL00-500 Straight Socket T-Type Standard 1 High-Efficiency Photovoltaic Branch Interconnection Connector

High-Efficiency Photovoltaic Branch Interconnection Connector - Superior Design Enhancing System Reliability

Rated Voltage
600V AC
Rated Current
300A
Withstand Voltage
2500V DC
Contact Terminal Specifications
⌀ 70 mm²/90 mm²/120 mm²
Current-Compatible Wire 1
300A-70mm²
Current-Compatible Wire 2
400A-90mm²
Current-Compatible Wire 3
500A-120mm²
Current-Compatible Wire 4
Mechanical Lifespan
1000
Operating Temperature
-40℃~+105℃
Waterproof Rating
IP67&IP2X
With Automatic Secondary Locking / High-Voltage Self-Locking

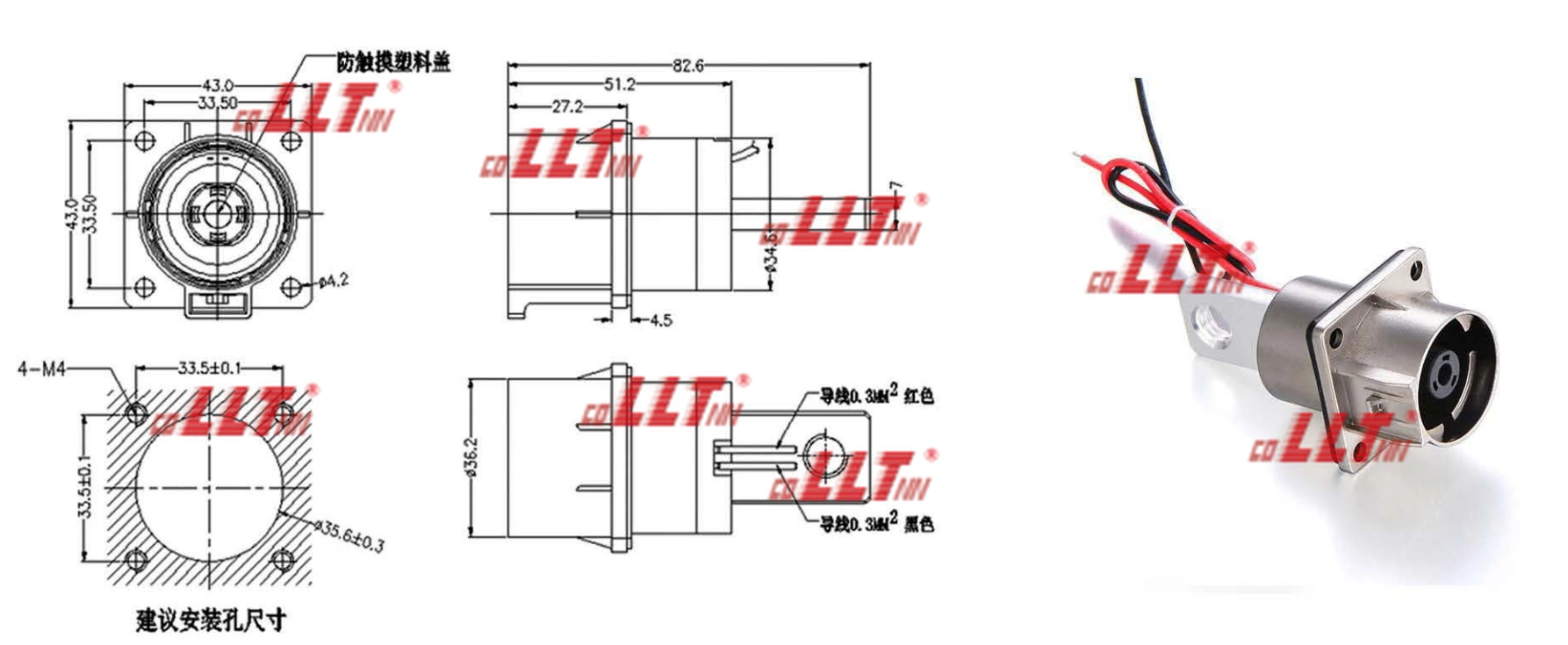

Hardware Layout Diagram
↔
LPL28-500 Elbow Plug T-Type Standard 2 High-Efficiency Photovoltaic Connector

High-Efficiency Energy-Saving T-Type Photovoltaic Connector - Optimized for Industrial Photovoltaic Systems

Rated Voltage
600V AC
Rated Current
300A
Withstand Voltage
2500V DC
Contact Terminal Specifications
⌀ 70 mm²/90 mm²/120 mm²
Current-Compatible Wire 1
300A-70mm²
Current-Compatible Wire 2
400A-90mm²
Current-Compatible Wire 3
500A-120mm²
Current-Compatible Wire 4
Mechanical Lifespan
1000
Operating Temperature
-40℃~+105℃
Waterproof Rating
IP67&IP2X
Hardware Layout

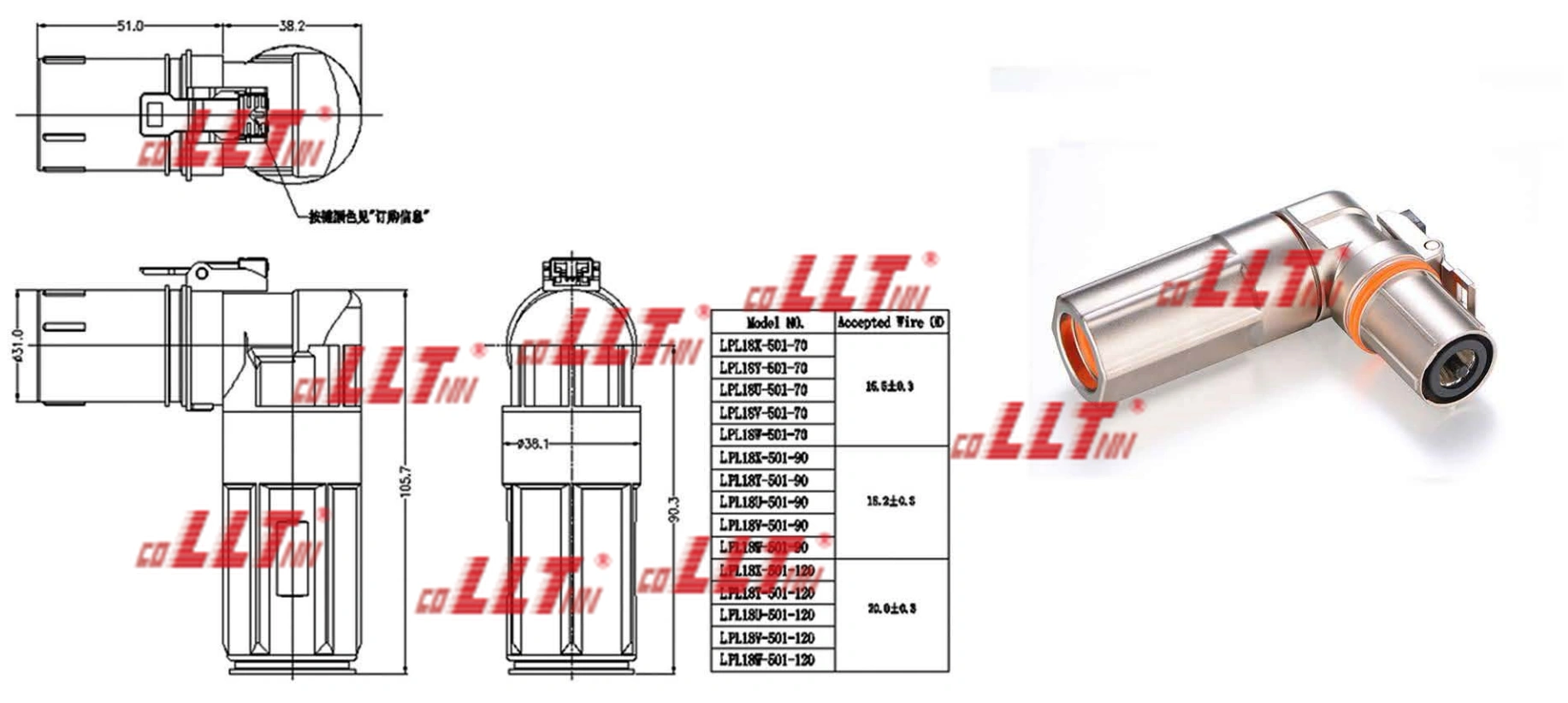

Hardware Layout Diagram
LPL18-500 Straight Plug High-Efficiency Photovoltaic Small Branch Interconnection Connector

High-Efficiency Photovoltaic Small Branch Interconnection Connector - Optimized for Distributed Energy Systems

Rated Voltage
600V AC
Rated Current
300A
Withstand Voltage
2500V DC
Contact Terminal Specifications
⌀ 70 mm²/90 mm²/120 mm²
Current-Compatible Wire 1
300A-70mm²
Current-Compatible Wire 2
400A-90mm²
Current-Compatible Wire 3
500A-120mm²
Current-Compatible Wire 4
Mechanical Lifespan
1000
Operating Temperature
-40℃~+105℃
Waterproof Rating
IP67&IP2X
Hardware Layout

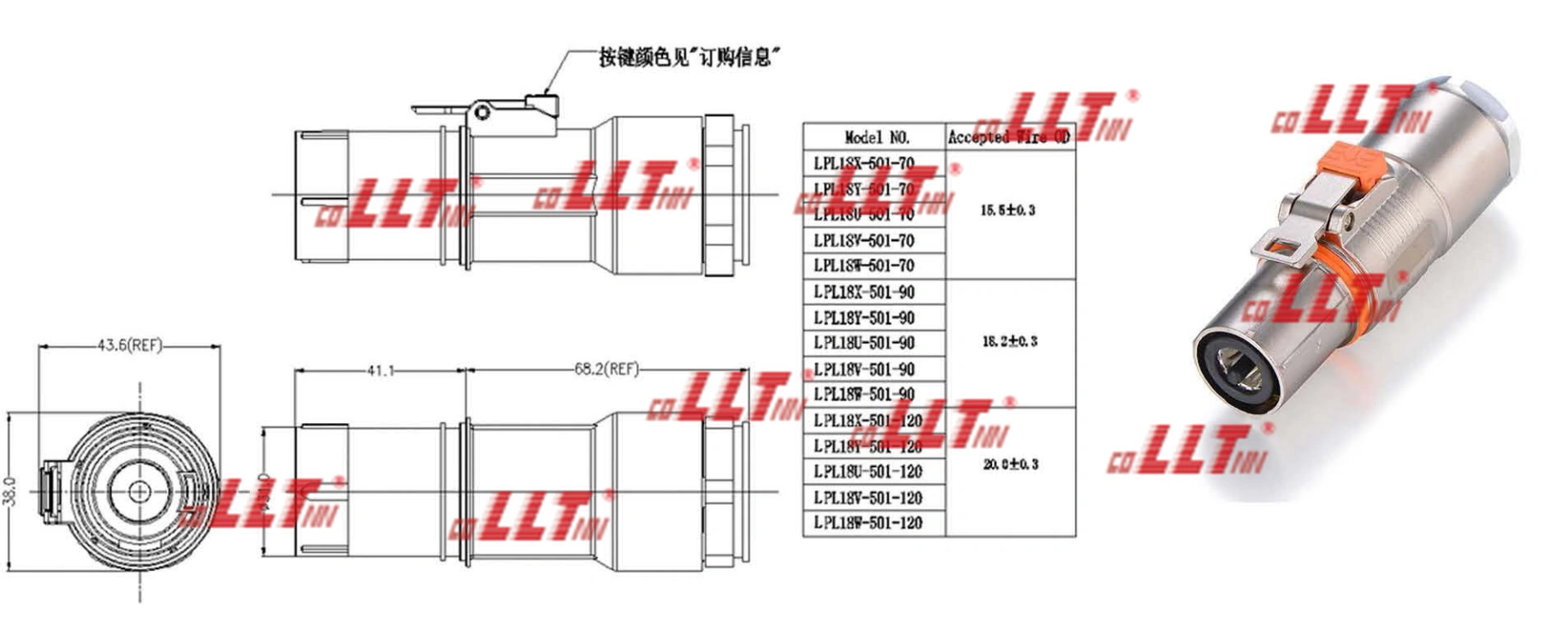

Hardware Layout Diagram
